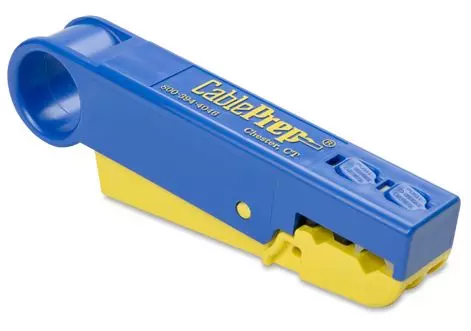

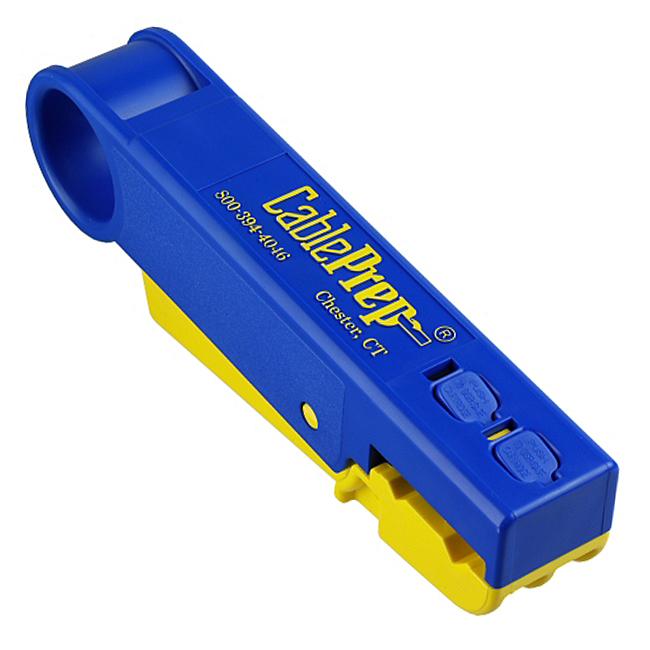

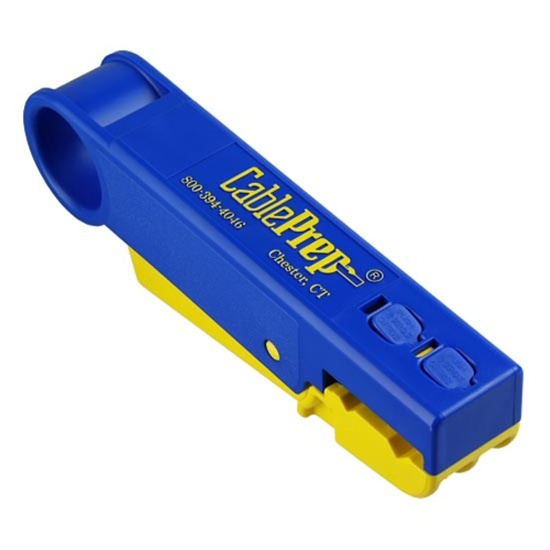

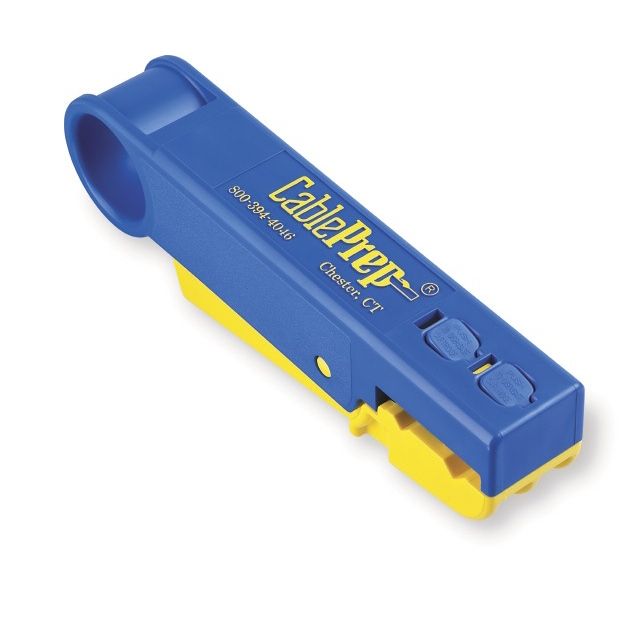

Super CPT Cable Stripping Tools

Nov 30, 2017

The Super CPT tool is a coax cable stripper specifically designed to remove the cable jacket, cut the braid and dielectric, and expose the center conductor on large- and small-diameter braided cables, all in one smooth operation. This coax cable stripper facilitates working on multiple cable types because it holds two cartridges, eliminating the need for multiple cable strippers. The Super CPT works on all standard (single) through quad shielded RG-6, -59, -7, and -11 cables. Super CPT cartridges are also available for CommScope 59 Quad-series Headend and Times Fiber TXFF cables.
The Super CPT cable stripping tool strips the jacket and cuts back the braid and dielectric to the proper dimensions on braided and braid-replacement drop cables, including standard (single) through quad shielded RG-6, -59, -7, and -11 cables. Super CPT cartridges are also available for CommScope 59 Quad-series Headend and Times Fiber TXFF cables. The tool facilitates working on multiple cable types because it holds two cartridges, eliminating the need for frequent cartridge changes. With the new insertion feature, the Super CPT also assists the process of inserting a cable into a connector before compression or crimping.

SCPT insertion socketsConnector Insertion Sockets:
The new connector insertion feature of the Super CPT provides all the leverage needed to push the connector onto the cable, eliminating the need for a separate insertion tool. Insertion is a speedy, one-step operation and doesn’t require threading and unthreading of the connector. Simply slip the connector into the appropriate socket (6/59 or 7/11) and push the cable into the connector. Sockets support all RG-6, -59, -7, and -11 connectors.





A Wide, Durable Body:
The wide jaws easily accommodate the bulk of large-diameter cables. Made of durable plastic, the lightweight SCPT tool offers consistent, precision performance even under harsh conditions.





Two Cartridge Slots:
Slots for holding two different sized cartridges make it convenient to use the SCPT tool when working on multiple cable types.





An Ergonomic, Efficient Design:
The SCPT body is comfortable to hold and easy to operate with either hand. Because jacket, braid, and dielectric are cut with one simple motion, cables can be prepared quickly and easily.





Stripped RGFactory Calibration:
Pre-calibrated dimensions for different applications help to ensure that jackets are stripped and braid and dielectric are cut back properly.





Quick-release Mechanism:
A quick-release mechanism makes changing a cartridge in either slot a quick, easy, and safe operation.





CPT Cartridge BladesHardened Tool-steel Blades:
Made of the highest quality steel, SCPT blades ensure optimum performance over a long life. Each cartridge can prepare 2,500 – 5,000 cables, depending on braid coverage.





Patented Clean-out Feature:
The patented cleanout feature of the Super CPT tool automatically removes excess jacket, braid, and dielectric from the tool after stripping.





RBC CompositeColor-coded Replaceable Cartridges:
Color-coding of the replaceable cartridges makes it easy to identify the right cartridge for the application. The cartridges snap easily into place.

Order NumberWeight
(Ounces)
Weight
(Grams)
Tool ColorCartridge Color
SCPT5.4154Yellow and Bluenone
SCPT-65917.4209Yellow and BlueGray/Black
SCPT-6591PL7.4209Yellow and BlueBlue/Yellow
RBC-65900.618Black
RBC-6590PL0.618Blue
RBC-12500.618Blue
RBC-6590TS0.618White
RBC-11000.618Grey
RBC-1100PL0.618Blue
RBC-1100-1250.618Orange
RBC-59HEC20.618White
RBC-TXFF-2500.618Yellow
Super CPT Tool
Tool Order NumberDescription
SCPTSuper CPT without cartridges; includes Insertion Tool feature
SCPT-6591****Super CPT w/659 & 711 cartridges; includes Insertion Tool feature
SCPT-6591S****Super CPT w/659 & 711 cartridges w/stops; includes Insertion Tool feature
SCPT-6591PLSuper CPT w/659 & 711 plenum cartridges; includes Insertion Tool feature
SCPT-TXFF-6prepares RG-6, -59, & 1/2" Flex Feeder cable 1/4 x 1/4 prep
(replaces part # CPT-TXFF-250)
SCPT-TXFFprepares Flexible Feeder drop cable 1/4" braid exposure
(replaces part # CPT-TXFF-250)
Cartridges See second table below for specific types of 6- and 59-series cables.
Cable Type*Braid Exposure (inches/mm)Center Conductor Exposure (inches/mm)Cartridge Slot**Cartridge Order NumberCartridge Quantity per Package
6 & 590.250 / 6.40.250 minimum / 6.4 minimumBRBC-6590****10
6 & 59 Plenum0.250 / 6.40.250 minimum / 6.4 minimumBRBC-6590PL10
6 & 590.125 / 3.20.250 with stop/ 6.4 with stopBRBC-125010
TriShield 60.250 / 6.40.250 / 6.4BRBC-6590TS10
7 & 110.250 / 6.40.250 minimum / 6.4 minimumARBC-110010
7 & 11 Plenum0.250 / 6.40.250 minimum / 6.4 minimumARBC-1100PL10
7 & 110.125 / 3.20.250 minimum / 6.4 minimumARBC-1100-12510
CommScope 59 Quad Series
Head End
0.250 / 6.4
(Cuts off first layer of braid)
0.250 minimum / 6.4 minimumBRBC-59HEC21
Times Fiber Flexible Feeder (TXFF) and CommScope F500.250 / 6.4AdjustableARBC-TXFF-2501
* Cartridges for other than drop cables are listed under wireless and fiber applications. ** Cartridge slots are labeled on the tool body. Cartridges must be placed in the slot indicated. **** Super CPT tools fitted with the RBC-6590 and RBC-1100 cartridges work with all the following cables:
Belden/PPC CablesCommScope CablesTimes Fiber CablesTrilogy Cables
59 Series -59 Series -59 Series -59 Series -
67% Braid67% Braid67% Braid67% Braid
59 Series -59 Series -59 Series -59 Series -
95% Braid95% Braid95% Braid95% Braid
59 Series - Tri 53%
59 Series - Tri 67%59 Series - Tri 67%59 Series - Tri 67%
59 Series - Tri 80%
59 Series - Tri 95%59 Series - Tri 95%
59 Series - Quad59 Series - Quad59 Series - Quad59 Series - Quad
6 Series - 60% Braid6 Series - 60% Braid6 Series - 60% Braid6 Series - 60% Braid
6 Series - 90% Braid6 Series - 90% Braid6 Series - 90% Braid6 Series - 90% Braid
6 Series - Tri 60%6 Series - Tri 60%6 Series - Tri 60%6 Series - Tri 60%
6 Series - Tri 77%6 Series - Tri 77%
6 Series - Tri 80%
6 Series - Tri 90%
6 Series - Quad6 Series - Quad6 Series - Quad6 Series - Quad
