ART – Armor Removal Tools

Nov 30, 2017

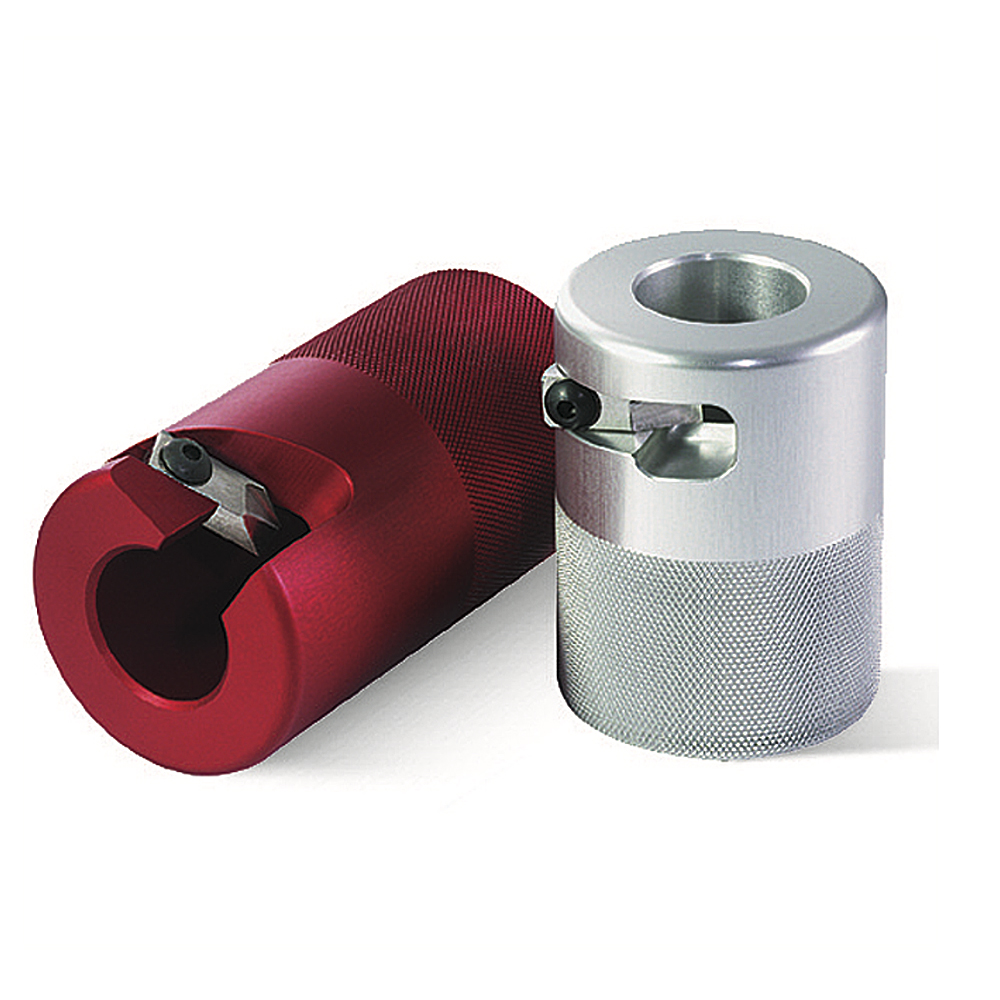

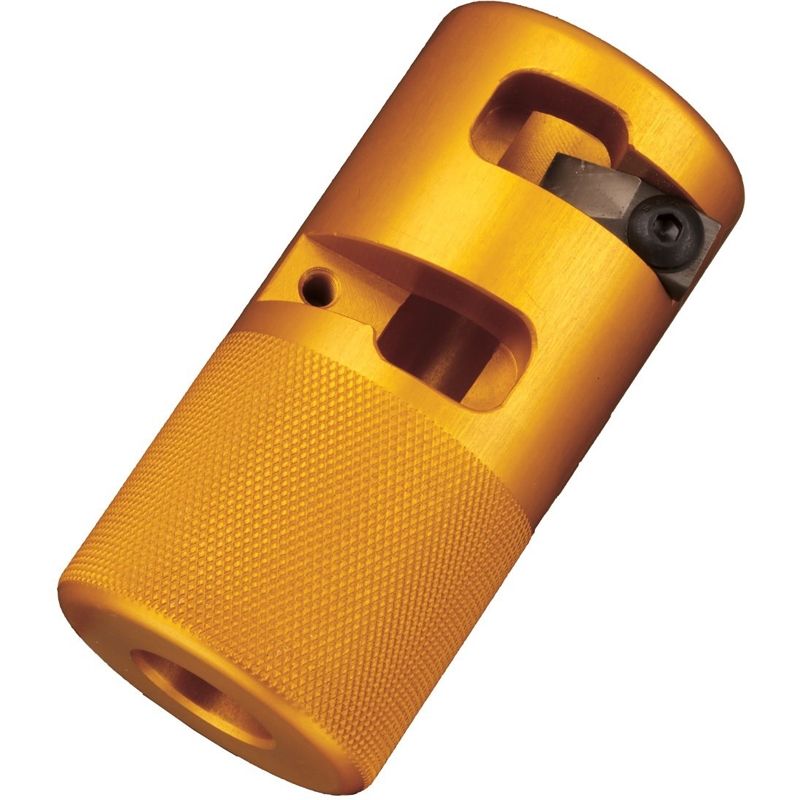

ART armor removal tools strip the armored jacket from sub-surface cables. ART strippers remove the armor from CommScope® PIII, QR, and Cable Guard sub-surface cables.

ART strippers remove the armor from CommScope® PIII, QR, and Cable Guard sub-surface cables.

ART bladeMultiple Blade Angles:
ART blades are made from hardened steel and ground to have multiple angles that aid lifting and cutting. The blades provide clean, accurate cuts time after time, but can be easily replaced when necessary.





ART actionDesigned for Safe Operation:
Thanks to a safety-oriented design, the removed armor coil is kept away from the user’s hand.





Knurled bodyKnurled Color-coded Bodies:
A knurled surface ensures a firm grip, while the color-coded body facilitiates picking the right tool for different sized cables.

Order NumberWeight
(Ounces)
Weight
(Grams)
Tool Color
ART-500PIII10.24290.3Gold
ART-625PIII10.24290.3Green
ART-750PIII12.16344.7Red
ART-875PIII15.36435.4Silver
ART-1000PIII17.92508Silver
ART-7MMQR14.08399.16Black
ART-500QR10.88308.4Black
ART-540QR10.88308.4Black
ART-715QR12.16344.7Black
ART-860QR15.36435.4Black
ART-1125QR12.16344.7Black
ART-500CG12.16344.7Gold
ART-565CG11.84335.7Gold
ART-625CG11.2317.5Green
ART-700CG15.04426.4Red
ART-750CG15.04426.4Red
ART-875CG17.92508.03Silver
ART-500MC10.24290.3Gold
ART-650MC10.24290.3Green
ART-750MC12.16344.7Red
ART-500RB0.6418.1
ART-625RB0.6418.1
ART-750RB0.6418.1
ART-875RB0.6418.1
ART-1000RB0.6418.1
ART-7MMQRRB0.6418.1
ART-500QRRB0.6418.1
ART-540QRRB0.6418.1
ART-715QRRB0.6418.1
ART-860QRRB0.6418.1
ART-1125QRRB0.6418.1
ART-500CGRB0.6418.1
ART-565CGRB0.6418.1
ART-625CGRB0.6418.1
ART-700CGRB0.6418.1
ART-750CGRB0.6418.1
ART-875CGRB0.6418.1
ART-500MCRB0.6418.1
ART-650MCRB0.6418.1
ART-750MCRB0.6418.1

Replacement blade kit includes blade, spring washer, screw, and hex key.

CommScopeART Order NumberReplacement Blade
Cable TypeOrder Number
.500 PIIIART-500PIIIART-500RB
.625 PIIIART-625PIIIART-625RB
.750 PIIIART-750PIIIART-750RB
.875 PIIIART-875PIIIART-875RB
1.000 PIIIART-1000PIIIART-1000RB
.320 (7MM) QRART-7MMQRART-7MMQRRB
.500 QRART-500QRART-500QRRB
.540 QRART-540QRART-540QRRB
.715 QRART-715QRART-715QRRB
.860 QRART-860QRART-860QRRB
1.125 QRART-1125QRART-1125QRRB
.500 CABLEGUARDART-500CGART-500CGRB
.565 CABLEGUARDART-565CGART-565CGRB
.625 CABLEGUARDART-625CGART-625CGRB
.700 CABLEGUARDART-700CGART-700CGRB
.750 CABLEGUARDART-750CGART-750CGRB
.875 CABLEGUARDART-875CGART-875CGRB
.500 CommScope Air Dielectric MC2ART-500MCART-500MCRB
.650 CommScope Air Dielectric MC2ART-650MCART-650MCRB
.750 CommScope Air Dielectric MC2ART-750MCART-750MCRB
