JCS Hardline Cable Jacket Stripping Tools

Nov 30, 2017

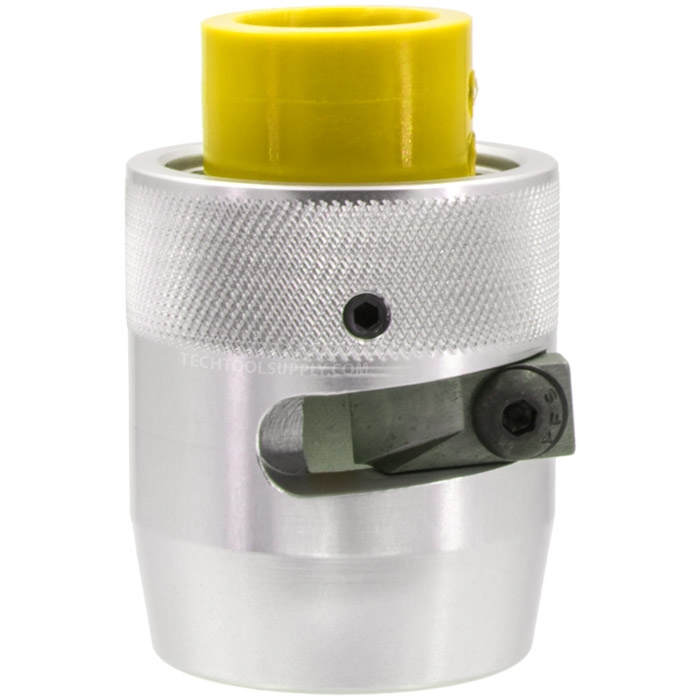

Durable and ergonomically designed, JCS cable jacket strippers cleanly remove the jackets on hard-line trunk and distribution cables. JCS tools strip the jacket on 0.412″ through 1.000″ PIII, T10, TX10, MC2, and PB10 cables; 0.540″, 0.715″, and 0.860″ CommScope® double-jacketed cables; CommScope 7mm, F320, and 0.500″ through 1.125″ QR hardline cables.

JCS tools strip the jacket on 0.412″ through 1.000″ PIII, T10, TX10, MC2, and PB10 cables; 0.540″, 0.715″, and 0.860″ CommScope® double-jacketed cables; CommScope 7mm, F320, and 0.500″ through 1.125″ QR hard-line cables; and Andrews CSA6 and CSA11 braid-replacement drop cables.

Dual-edged steel bladesDual-edged Steel Blades:
The JCS blade bites into and lifts the cable jacket with ease, cleanly removing the jacket without damaging the soft outer conductor. Made of heat-treated tool steel, the blade is easy to replace after a long life of sharpness.

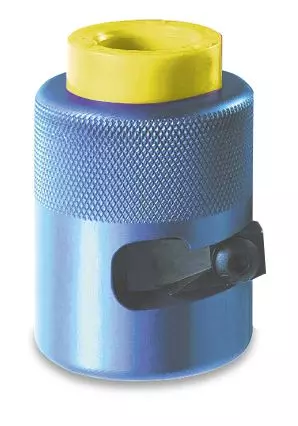

Knurled tool bodyKnurled Tool Body:

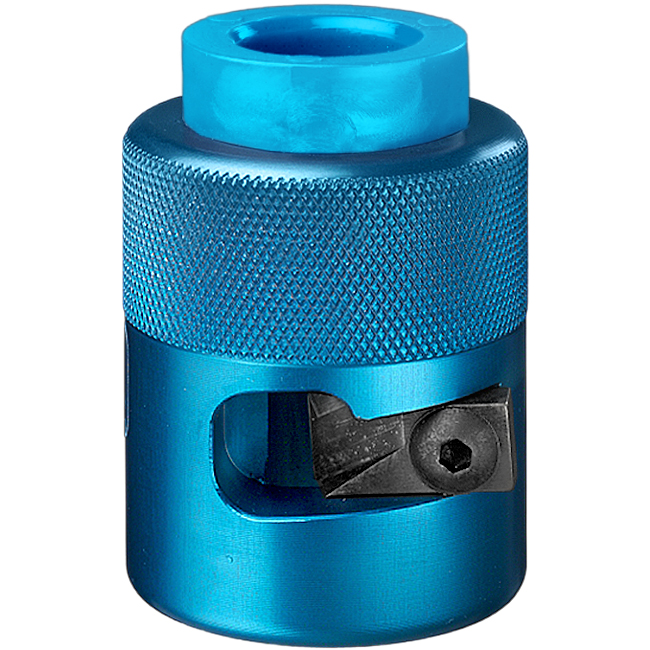

The JCS tool body is anodized and sealed to protect it from the elements. On non-QR tools, the body’s knurled gripping surface ensures a firm hold during the stripping operation.





Color-coded guide sleevesColor-coded Guide Sleeves:

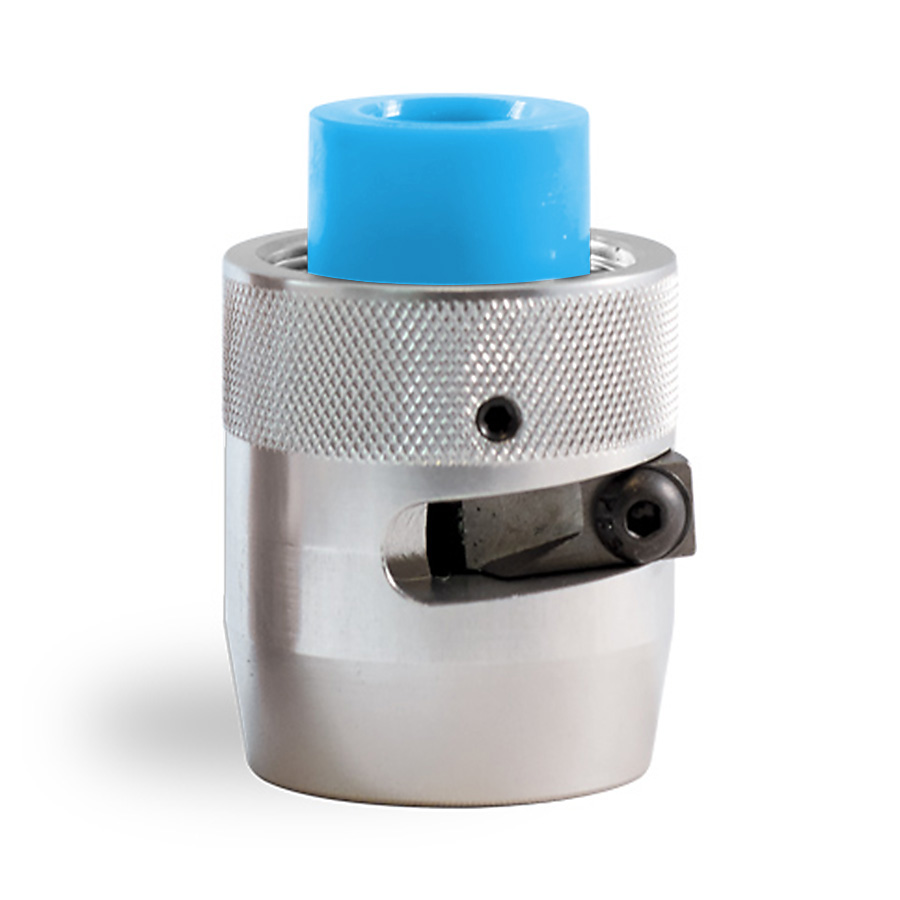

A plastic guide sleeve on non-QR tools keeps all metal surfaces away from the soft aluminum outer conductor. The guide sleeve is color-coded to match the corresponding Cable Prep brand SCT stripping/coring tool, thereby facilitating selection of the right tool for the application.





Patented mandrel pinPatented Mandrel Pin:
A patented mandrel pin on QR tools protects the soft outer conductor during the jacket stripping operation.

Order NumberWeight (Pounds)Weight (Kilograms)Guide Sleeve Color
JCS-4120.460.21Light Blue
JCS-5000.440.2Yellow
JCS-6250.420.19Green
JCS-7500.40.18Red
JCS-8750.340.16Grey
JCS-10000.340.16Black
JCS-5650.440.2Orange
JCS-7000.420.19Maroon
JCS-8400.380.17Light Grey
JCS-11600.640.29White
JCS-440MC0.460.21Light Blue
JCS-500MC0.440.2Yellow
JCS-650MC0.420.19Green
JCS-750MC0.40.18Red
JCS-1000MC0.340.16Black
JCS-7MMQR0.460.21
JCS-F320QR0.460.21
JCS-500QR0.420.19
JCS-540QR0.420.19
JCS-715QR0.40.18
JCS-860QR0.380.17
JCS-1125QR0.640.29
DJS-540QR0.440.2
DJS-715QR0.40.18
DJS-860QR0.340.15
JCS-CSA60.460.21
JCS-CSA110.460.21
JSB-30110.020.01
JSB-30250.020.01
Cable Size / TypeJCS Tool Order NumberGuide Sleeve ColorJCS Replacement Blade Kit
Order Number
.412 T10 & PIIIJCS-412Light BlueJSB-3011
.500 T10 & PIIIJCS-500YellowJSB-3011
.625 T10 & PIIIJCS-625GreenJSB-3011
.750 T10 & PIIIJCS-750RedJSB-3011
.875 T10 & PIIIJCS-875GreyJSB-3011
1.000 T10 & PIIIJCS-1000BlackJSB-3025
.565 TX10 & PIIIJCS-565OrangeJSB-3011
.700 TX10 & PIIIJCS-700MaroonJSB-3011
.840 TX10 & PIIIJCS-840Light GreyJSB-3011
1.160 TX10 & PIIIJCS-1160WhiteJSB-3025
.440 MC2JCS-440MCLight BlueJSB-3011
.500 MC2JCS-500MCYellowJSB-3011
.650 MC2JCS-650MCGreenJSB-3011
.750 MC2JCS-750MCRedJSB-3011
1.000 MC2JCS-1000MCBlackJSB-3025
.320 (7 mm) QRJCS-7MMQR*JSB-3011
.320 (7 mm) QR with Corning Gilbert GAF-360-320-QR Crimp Style or Thomas Betts SNS320QR connectorsJCS-F320QR*JSB-3011
.500 QRJCS-500QR*JSB-3011
.540 QRJCS-540QR*JSB-3011
.715 QRJCS-715QR*JSB-3011
.860 QRJCS-860QR*JSB-3011
1.125 QRJCS-1125QR*JSB-3025
.540 CommScopeDJS-540QRJSB-3011
Double-jacketed Cable
.715 CommScopeDJS-715QRJSB-3011
Double-jacketed Cable
.860 CommScopeDJS-860QRJSB-3011
Double-jacketed Cable
Andrews CSA6 75-ohm Braid Replacement cableJCS-CSA6JSB-3011
Andrews CSA11 75-ohm Braid Replacement cableJCS-CSA11JSB-3011
*SCT-QR tools are shipped with jacket strippers. Use JCS part numbers when ordering replacement jacket strippers only.

JCS Hardline Cable Jacket Stripping Tools

Nov 30, 2017

Durable and ergonomically designed, JCS cable jacket strippers cleanly remove the jackets on hard-line trunk and distribution cables. JCS tools strip the jacket on 0.412″ through 1.000″ PIII, T10, TX10, MC2, and PB10 cables; 0.540″, 0.715″, and 0.860″ CommScope® double-jacketed cables; CommScope 7mm, F320, and 0.500″ through 1.125″ QR hardline cables.

JCS tools strip the jacket on 0.412″ through 1.000″ PIII, T10, TX10, MC2, and PB10 cables; 0.540″, 0.715″, and 0.860″ CommScope® double-jacketed cables; CommScope 7mm, F320, and 0.500″ through 1.125″ QR hard-line cables; and Andrews CSA6 and CSA11 braid-replacement drop cables.

Dual-edged steel bladesDual-edged Steel Blades:
The JCS blade bites into and lifts the cable jacket with ease, cleanly removing the jacket without damaging the soft outer conductor. Made of heat-treated tool steel, the blade is easy to replace after a long life of sharpness.





Knurled tool bodyKnurled Tool Body:
The JCS tool body is anodized and sealed to protect it from the elements. On non-QR tools, the body’s knurled gripping surface ensures a firm hold during the stripping operation.





Color-coded guide sleevesColor-coded Guide Sleeves:
A plastic guide sleeve on non-QR tools keeps all metal surfaces away from the soft aluminum outer conductor. The guide sleeve is color-coded to match the corresponding Cable Prep brand SCT stripping/coring tool, thereby facilitating selection of the right tool for the application.





Patented mandrel pinPatented Mandrel Pin:
A patented mandrel pin on QR tools protects the soft outer conductor during the jacket stripping operation.

Mobile users scroll right to view all columns.

Order NumberWeight (Pounds)Weight (Kilograms)Guide Sleeve Color
JCS-4120.460.21Light Blue
JCS-5000.440.2Yellow
JCS-6250.420.19Green
JCS-7500.40.18Red
JCS-8750.340.16Grey
JCS-10000.340.16Black
JCS-5650.440.2Orange
JCS-7000.420.19Maroon
JCS-8400.380.17Light Grey
JCS-11600.640.29White
JCS-440MC0.460.21Light Blue
JCS-500MC0.440.2Yellow
JCS-650MC0.420.19Green
JCS-750MC0.40.18Red
JCS-1000MC0.340.16Black
JCS-7MMQR0.460.21
JCS-F320QR0.460.21
JCS-500QR0.420.19
JCS-540QR0.420.19
JCS-715QR0.40.18
JCS-860QR0.380.17
JCS-1125QR0.640.29
DJS-540QR0.440.2
DJS-715QR0.40.18
DJS-860QR0.340.15
JCS-CSA60.460.21
JCS-CSA110.460.21
JSB-30110.020.01
JSB-30250.020.01

Mobile users scroll right to view all columns.

Cable Size / TypeJCS Tool Order NumberGuide Sleeve ColorJCS Replacement Blade Kit
Order Number
.412 T10 & PIIIJCS-412Light BlueJSB-3011
.500 T10 & PIIIJCS-500YellowJSB-3011
.625 T10 & PIIIJCS-625GreenJSB-3011
.750 T10 & PIIIJCS-750RedJSB-3011
.875 T10 & PIIIJCS-875GreyJSB-3011
1.000 T10 & PIIIJCS-1000BlackJSB-3025
.565 TX10 & PIIIJCS-565OrangeJSB-3011
.700 TX10 & PIIIJCS-700MaroonJSB-3011
.840 TX10 & PIIIJCS-840Light GreyJSB-3011
1.160 TX10 & PIIIJCS-1160WhiteJSB-3025
.440 MC2JCS-440MCLight BlueJSB-3011
.500 MC2JCS-500MCYellowJSB-3011
.650 MC2JCS-650MCGreenJSB-3011
.750 MC2JCS-750MCRedJSB-3011
1.000 MC2JCS-1000MCBlackJSB-3025
.320 (7 mm) QRJCS-7MMQR*JSB-3011
.320 (7 mm) QR with Corning Gilbert GAF-360-320-QR Crimp Style or Thomas Betts SNS320QR connectorsJCS-F320QR*JSB-3011
.500 QRJCS-500QR*JSB-3011
.540 QRJCS-540QR*JSB-3011
.715 QRJCS-715QR*JSB-3011
.860 QRJCS-860QR*JSB-3011
1.125 QRJCS-1125QR*JSB-3025
.540 CommScopeDJS-540QRJSB-3011
Double-jacketed Cable
.715 CommScopeDJS-715QRJSB-3011
Double-jacketed Cable
.860 CommScopeDJS-860QRJSB-3011
Double-jacketed Cable
Andrews CSA6 75-ohm Braid Replacement cableJCS-CSA6JSB-3011
Andrews CSA11 75-ohm Braid Replacement cableJCS-CSA11JSB-3011

*SCT-QR tools are shipped with jacket strippers. Use JCS part numbers when ordering replacement jacket strippers only.
