Cobra 360 Compression Tools Test

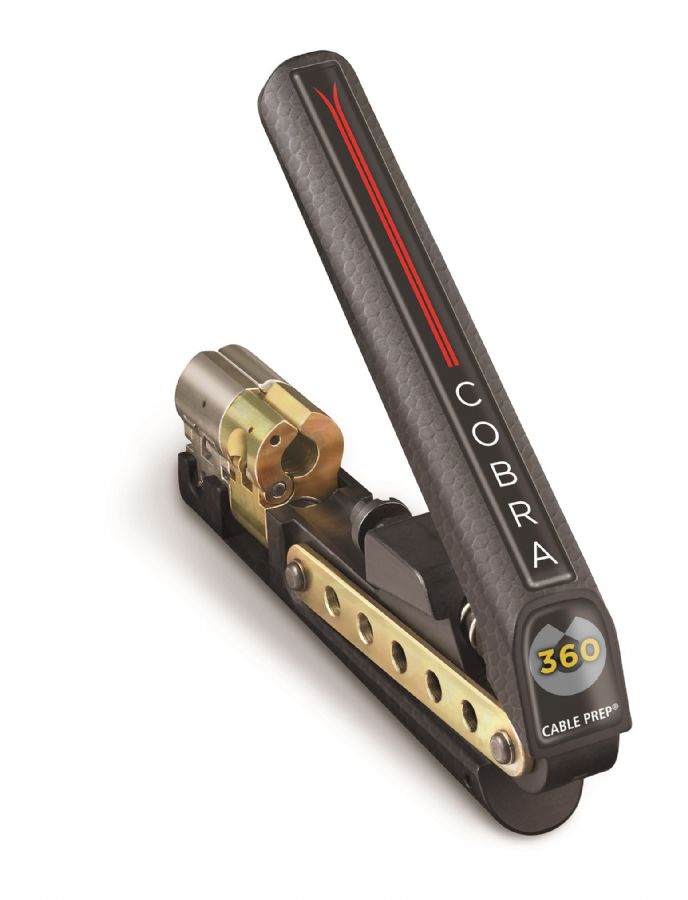

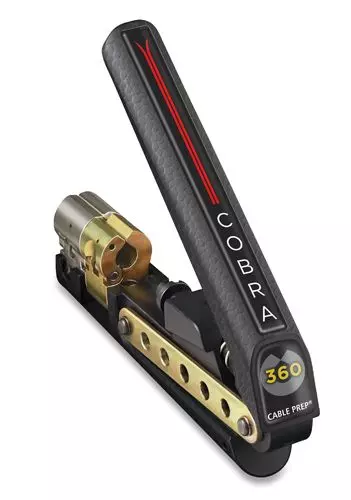

Cobra 360 compression tools attach compression connectors used in drop cable applications. Low in cost and highly productive, the Cobra 360 features a performance-driven design that delivers easy, powerful leverage and ensures consistent, precise connections, every time.

  • Ergonomic, compact and sturdy design can be operated easily and comfortably with either hand.
  • Patented and efficient self releasing dogs facilitate easy, one-handed cable insertion and removal while ensuring 360-degree connector support.
  • Dual Integrated Connector Supports enable quick conversions from one application to another without having to make adjustments or change tools altogether.

The Cobra 360 and Cobra 360-G are adjustable and attach all F-type compression connectors used on RG-6, -59, -7, -11 and mini-coax cables. Other Cobra tools are available that are non-adjustable and factory-set for either .830 or .710, and other dimensions as indicated under the Ordering Info tab.

Ergonomic and Compact DesignErgonomic and Compact Design:
With a convenient pocket- sized design, The Cobra 360 compression tool can be operated easily and comfortably with either hand thanks to a newly modeled tool body made from high-strength materials that are surprisingly lightweight.

360-Degree Connector Support360-Degree Connector Support:
Patented dogs provide 360- degree connector support, thereby ensuring uniform compression and preventing connector distortion caused by misalignment.

Versatile, Dual Connector Support SystemVersatile, Dual Connector Support System:
Two sets of dogs are built into the Cobra. The support for RG-6 and -59 connectors simply swings out of the way when making RG-7 and -11 connections.

Efficient Self-releasing DogsEfficient Self-releasing Dogs:
Cables can be easily inserted and removed from the dogs with one hand, making the Cobra tool convenient and easy to use while avoiding damage to cables.

Easy-Release HandleEasy-release Handle:
A magnetic tip holds the handle closed when not in use, protecting the tool and making it so compact it can be stored in a pocket – or an eyeglasses case.

Factory-Calibrated Plunger TipsFactory-calibrated Plunger Tips:
The plunger settings on Cobra 360 compression tools support all F connectors used with RG 6/59, RG 7/11 and mini cables within a given class. The throw distance is set at the factory and requires no field calibration. Each tool is clearly marked with a .710 or .830 to quickly indicate the fixed setting dimension.

Made in the USAMade in the USA:
Every single part of the Cobra 360 is designed and manufactured in the USA using environmentally- friendly materials to the fullest extent.

PartNumberColorDimension (in)WeightWeight
(Inches)(Pounds)(Kilograms)
COBRA 360Black5.5.65.28
COBRA 360-830Black5.5.65.28
COBRA 360-710Black5.5.65.28
COBRA 360-GGreen5.5.65.28
COBRA 360-830-GGreen5.5.65.28
COBRA 360-710-GGreen5.5.65.28

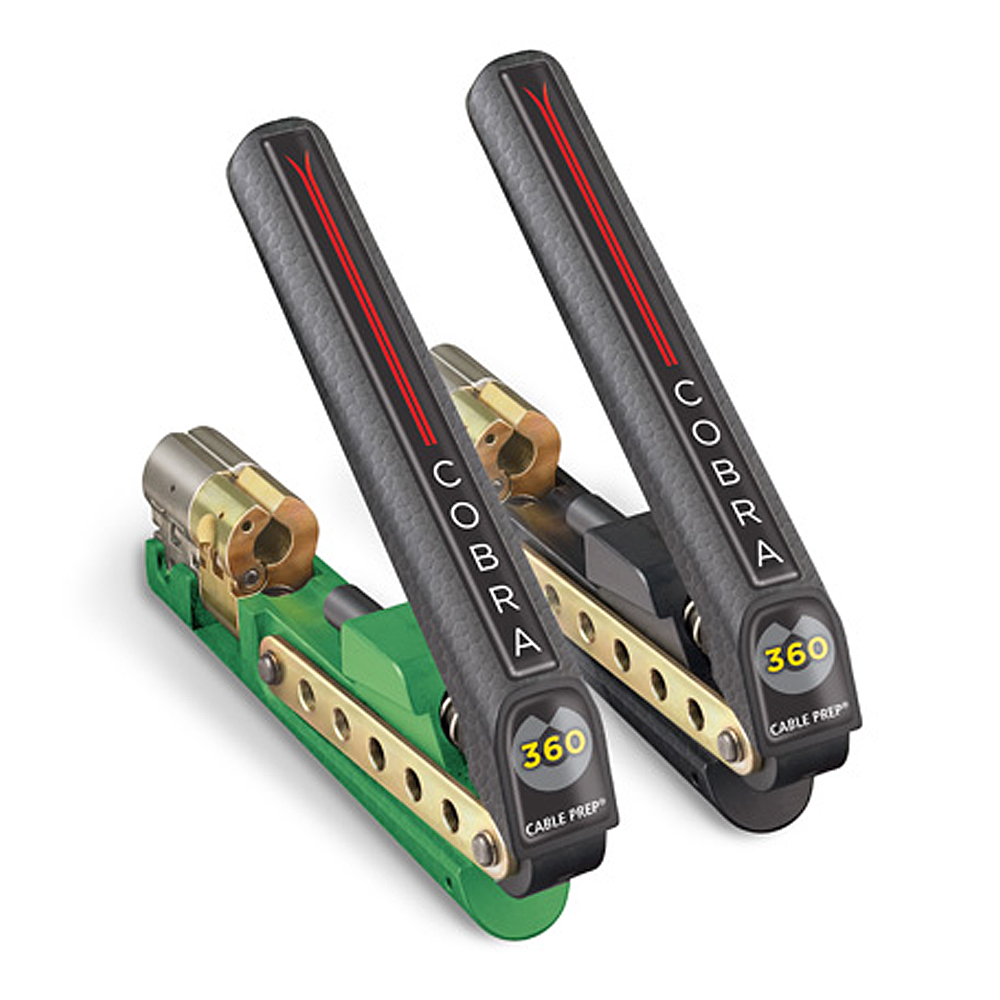

The COBRA 360 and COBRA 360-G are adjustable and therefore compatible with all connector types listed below. The other Cobra tools listed are non-adjustable and factory set for either .830 or .710, and other dimensions as indicated. The part number suffix “-G” indicates a difference in tool color only and applies to the green version of each tool.
Manufacturer,
Connector Type
Cable Size,
Dimension
COBRA 360,
COBRA 360-G
Black-Cobra
COBRA 360-830,
COBRA 360-830-G
Black-Cobra
COBRA 360-710,
COBRA 360-710-G
Black-Cobra
Belden
Snap & Seal (SNS)
6 & 59
.830
XX
Corning Gilbert
CX3
6 & 59
.830
XX
Corning Gilbert
EFC
6 & 59
.830
XX
Corning Gilbert
UltraEase
6 & 59
.830
XX
Corning Gilbert
CFC
6 & 59
.830
XX
Corning Gilbert
UltraRange
6 & 59
.830
XX
Digicon
DS
6 & 59
X
Digicon
RG
6 & 59
X
F-conn
FS
6 & 59
X
Holland Electronics
Superlok SLC
6 & 59
.830
XX
Ideal
Uniseal
6 & 59
.830
XX
Paladin
Seal Tight
6 & 59
.830
XX
PCT
TRS XL
6 & 59
.830
XX
PCT
TRS
6 & 59
.710
XX
PCT
ERS
6 & 59
.830
XX
PCT
FRS
6 & 59
.830
XX
PCT
QP
6 & 59
.830
XX
PPC
EXXL & EXXLWS
6 & 59
.830
XX
PPC
CMP
6 & 59
.830
XX
PPC
EX
6 & 59
.710
XX
Steren
Perma Seal II
6 & 59
.830
XX
Stirling
SPL
6 & 59
.760
X
Times Fiber
QCII
6 & 59
.830
XX
Belden
Snap & Seal (SNS)
7 & 11
1.425
XXX
Corning Cablecon
CX3
7 & 11
1.425
XXX
Corning Gilbert
UltraEase
7 & 11
1.395
X
Holland Electronics
Superlok SLC
7 & 11
1.425
XXX
Phoenix (PCT)
DRS
7 & 11
1.425
XXX
Phoenix (PCT)
TRS
7 & 11
1.425
XXX
Pico Macom
Perma Seal II
7 & 1
1.425
XXX
PPC
EX
7 & 11
1.425
XXX
Steren
Perma Seal II
7 & 11
1.425
XXX
Stirling
SPP
7 & 11
1.135
X
Stirling
SPL
7 & 11
1.525
X
Belden
Snap & Seal (SNS)
320QR
1.425
XXX
Phoenix (PCT)
DRS
320QR
1.425
XXX
PPC
EX
320QR
1.425
XXX
Times Fiber
QCII
11
1.425
XXX
