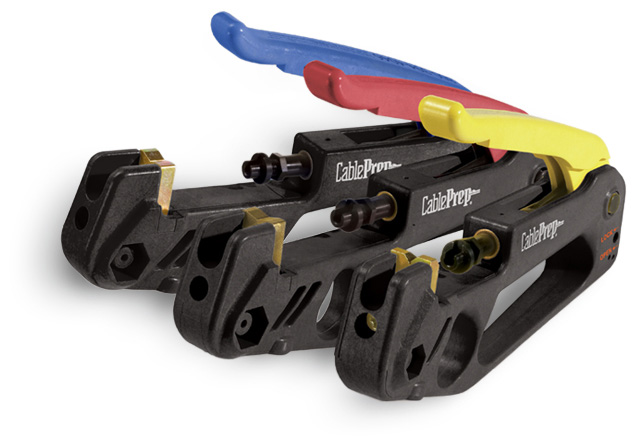

HPT Hybrid Pocket Compression Tools
The HPT Series of hybrid pocket compression tools insert and attach all cable compression connectors used in drop cable applications and are an affordable solution to ensure consistent, precise performance, every time. HPT hybrid pocket tools attach all RCA, BNC, and F-type cable compression connectors used on RG-6, -59, -11 and mini-coax cables.
HPT hybrid pocket tools attach all RCA, BNC, and F-type compression connectors used on RG-6, -59, -11 and mini-coax cables.
Ergonomic and Compact Design:
With a convenient pocket-sized design, HPT universal compression tools can be operated easily and comfortably with either hand thanks to a newly modeled tool body with a wrap-around comfort grip made from high strength materials that are surprisingly lightweight.
Universal Plunger Tips:
The plunger tips on HPT compression tools are truly universal. The tools support all connector types within a class, with no need to recalibrate the plunger throw or change the tip. The compression throw distance is set at the factory, and a hex lock nut keeps the tool calibrated over long periods of use. Field recalibration, if necessary, is quick and easy.
Slotted Plunger Tip for RCA Connectors:
The HPT plunger tip is slotted to accommodate RCA-type connectors, facilitating easy connector insertion.
Integrated Insertion Port:
Connector insertion ports molded into the tool for RCA, BNC, and F-connectors eliminate the need for and inconvenience of a separate insertion tool.
360-Degree Connector Support:
Patented dogs provide 360-degree connector support, thereby ensuring uniform compression and preventing connector distortion caused by misalignment.
Efficient Self-releasing Dogs:
Cables can be easily inserted and removed from the dogs with one hand, making HPT tools convenient and easy to use while avoiding damage to cables.
Easy-release Handle:
The handle clip keeps the handle secure during storage and conveniently folds out of the way during use.
HPT Part Number | Color | Dimension | Weight | Weight |
---|---|---|---|---|
(Inches) | (Pounds) | (Kilograms) | ||
HPT-6590 | Yellow | 6.75 | .50 | .22 |
HPT-1100 | Blue | 7.25 | .50 | .22 |
HPT-BNC | Red | 7.25 | .50 | .22 |
Abbreviations used for HPT ordering information: ICC – International Connectors and Cable PPC – Production Products Company PCT – Phoenix Communications Technology SNS – Thomas & Betts Snap-N-Seal
Connector Type | HPT-6590 | HPT-1100 | HPT-BNC |
---|---|---|---|
Cablecon CX3 6 and 59 | |||
Cablecon CX3 (BNC) | |||
Channel Vision Push & Seal® 6, 59 and mini (F and RCA) | |||
Channel Vision Push & Seal® 6, 59 and mini (BNC) | |||
Channel Vision Push & Seal® 7 & 11 (F) | |||
Corning Cablecon CX3 6 & 59 (F) | |||
Corning Cablecon CX3 7 & 11 (F) | |||
Corning Gilbert GAS320QRP | |||
Corning Gilbert Ultra Ease® 6, 59 & mini (F and RCA) | |||
Corning Gilbert Ultra Ease® 6, 59 & mini (BNC) | |||
Corning Gilbert Ultra Ease® 7 & 11 (F) | |||
Corning Gilbert Ultra Range® 6 & 59 (F) | |||
Digicon® DS 6, 59 & mini (F and RCA) | |||
Digicon® DS 6, 59 & mini (BNC) | |||
Digicon® DS 7 & 11 (F) | |||
F-conn FS 6, 59 & mini (F and RCA) | |||
F-conn FS 6, 59 & mini (BNC) | |||
F-conn FS 7 & 11 (F) | |||
Holland Electronics Superlok SLC® 6, 59 and mini (F and RCA) | |||
Holland Electronics Superlok SLC® 6, 59 and mini (BNC) | |||
Holland Electronics Superlok SLC® 11 (F) | |||
ICC Push & Seal® 6 & 59 (F) | |||
ICC Push & Seal® 7 & 11 (F) | |||
Ideal OmniCONN 6 & 59 (F and RCA) | |||
Ideal Uniseal® 6 & 59 (F) | |||
Liberty ConnecTec 6 & 59 (F and RCA) | |||
Liberty ConnecTec 6 & 59 (BNC) | |||
Paladin Seal Tight® 6 & 59 (F and RCA) | |||
Paladin Seal Tight® 6 & 59 (BNC) | |||
Phoenix (PCT) DRS 6 & 59 (F and RCA) | |||
Phoenix (PCT) Mini 59 (F) | |||
Phoenix (PCT) DRS 6 & 59 (BNC) | |||
Phoenix (PCT) DRS 7 & 11 (F) | |||
Phoenix (PCT) TRS 6 & 59 (F) | |||
Phoenix (PCT) TRS 7 & 11 (F) | |||
Pico Macom Perma Seal II® 6 & 59 (F) | |||
Pico Macom Perma Seal II® 7 & 11 (F) | |||
Pico Macom Push and Seal 6, 59 and mini (F and RCA) | |||
Pico Macom Push and Seal 6, 59 and mini (BNC) | |||
PPC CMP Mini 59 (F) | |||
PPC CMP 6 & 59 (RCA) | |||
PPC CMP 6 & 59 (BNC) | |||
PPC CMP EXXL and EXXLWS 6 & 59 (F) | |||
PPC EX 6 & 59 (F) | |||
PPC EX 6 & 59 (BNC) | |||
PPC EX 7 & 11 (F) | |||
PPC EX 320QR | |||
Steren Perma Seal II® 6, 59 and mini (F and RCA) | |||
Steren Perma Seal II® 6, 59 and mini (BNC) | |||
Steren Perma Seal II® 7 & 11 (F) | |||
Stirling 6 & 59 (F) | |||
Stirling 7 & 11 (F) | |||
Stirling SPL 6 (RCA) | |||
Stirling SPL 6 (BNC) | |||
Stirling SPL 11 (F) | |||
Belden/PPC Snap-N-Seal® (SNS) 6, 59 and mini (F and RCA) | |||
Belden/PPC Snap-N-Seal® (SNS) 6, 59 and mini (BNC) |
