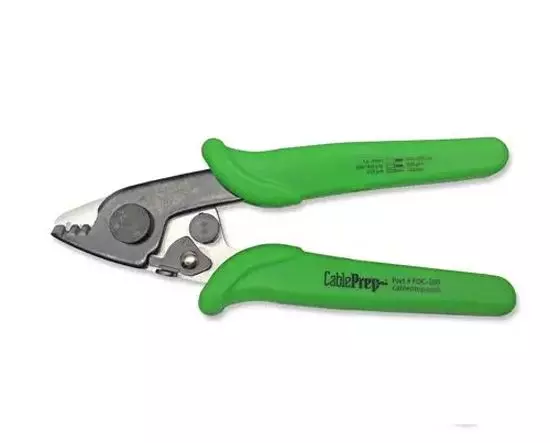

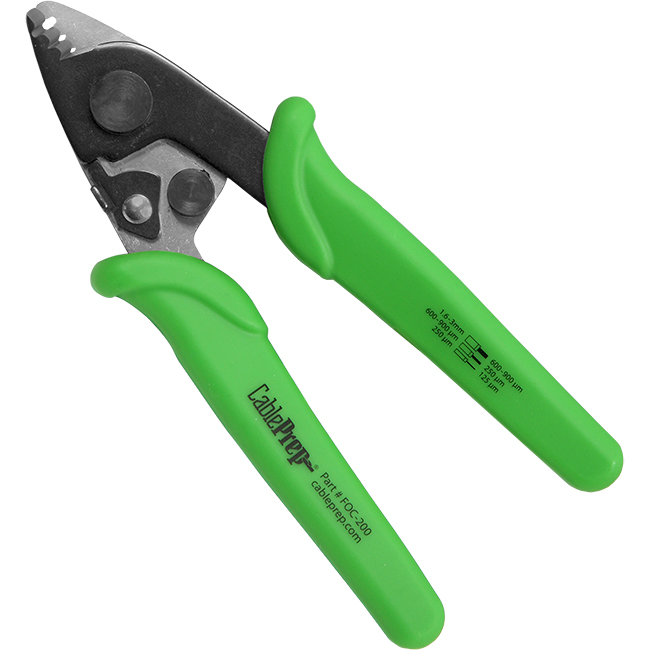

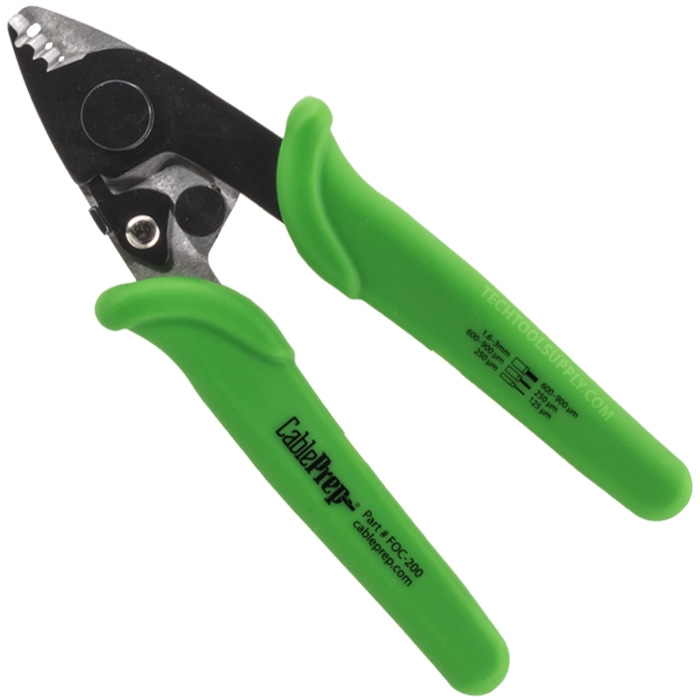

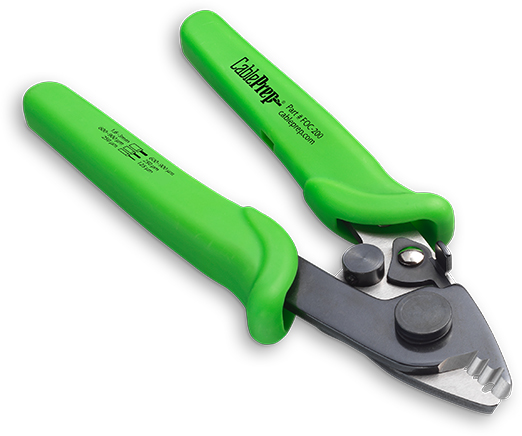

FOC Fiber Optic Cable Stripping Tool

The FOC-200 fiber optic cable stripping tool from Cable Prep brings a higher standard of performance to technicians working with fiber optic cables. Three cutting notches accommodate stripping requirements across a range of cable types, and because of the quality of its design and manufacturing, the FOC-200 boosts accuracy and productivity in the field even after thousands of cuts.

  • Industry-leading precision allows easy removal of more than one inch of jacket or buffer tube with just one cut.
  • Cushioned grips and special spring design deliver maximum comfort and ease of operation
  • Compact, ergonomic design with an easy-reach lock can be operated with either hand and stored in the pocket.

The FOC-200 works for all varieties of fiber optic cable, including loose tube and bonded fibers. Its three cutting notches are designed to strip 1.6 – 3mm fiber optic cable jacket down to the 600-900 micron buffer tube, then to the 250-micron coating, and finally down to the 125-micron glass fiber.

Superior Stripping Performance: Three precision-tooled cutting notches can remove more than one inch of fiber optic cable jacket, buffer tube or buffer coating in just one pass.



Unique, Self-lubricating Bolt: A mineral-oil impregnated nylon bushing promotes smooth movement of the jaws and ensures long-term accuracy.



Easy-reach Lock: The tool can be locked and unlocked effortlessly without changing hand position or using two hands.







SCPT insertion socketsPositive-action Spring: The wire spring is configured to open the grips fully wide and close with light, steady resistance, giving a “just right” hand feel.





Snug, Compact Design:
Soft-touch cushioned grips conform to the hand; small size fits easily in the pocket.
ItemPart NumberWeightLength
FOC Fiber Optic Cable Stripping ToolFOC2004.2 oz6 in
ItemPart Number
FOC Fiber Optic Cable Stripping ToolFOC200

FOC Fiber Optic Cable Stripping Tool

The FOC-200 fiber optic cable stripping tool from Cable Prep brings a higher standard of performance to technicians working with fiber optic cables. Three cutting notches accommodate stripping requirements across a range of cable types, and because of the quality of its design and manufacturing, the FOC-200 boosts accuracy and productivity in the field even after thousands of cuts.

  • Industry-leading precision allows easy removal of more than one inch of jacket or buffer tube with just one cut.
  • Cushioned grips and special spring design deliver maximum comfort and ease of operation
  • Compact, ergonomic design with an easy-reach lock can be operated with either hand and stored in the pocket.

The FOC-200 works for all varieties of fiber optic cable, including loose tube and bonded fibers. Its three cutting notches are designed to strip 1.6 – 3mm fiber optic cable jacket down to the 600-900 micron buffer tube, then to the 250-micron coating, and finally down to the 125-micron glass fiber.

Superior Stripping Performance:
Three precision-tooled cutting notches can remove more than one inch of fiber optic cable jacket, buffer tube or buffer coating in just one pass.



Unique, Self-lubricating Bolt:
A mineral-oil impregnated nylon bushing promotes smooth movement of the jaws and ensures long-term accuracy.



Easy-reach Lock:
The tool can be locked and unlocked effortlessly without changing hand position or using two hands.



Positive-action Spring:
SCPT insertion sockets
The wire spring is configured to open the grips fully wide and close with light, steady resistance, giving a “just right” hand feel.







Snug, Compact Design:
Soft-touch cushioned grips conform to the hand; small size fits easily in the pocket.
