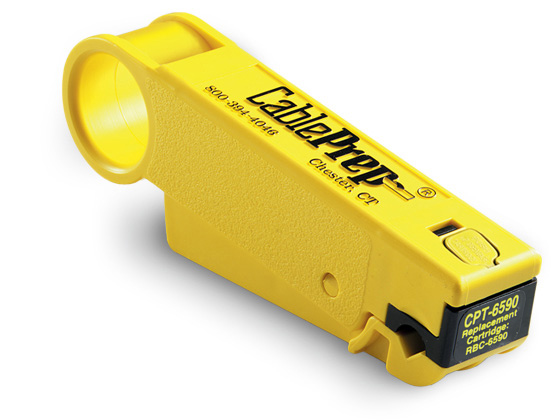

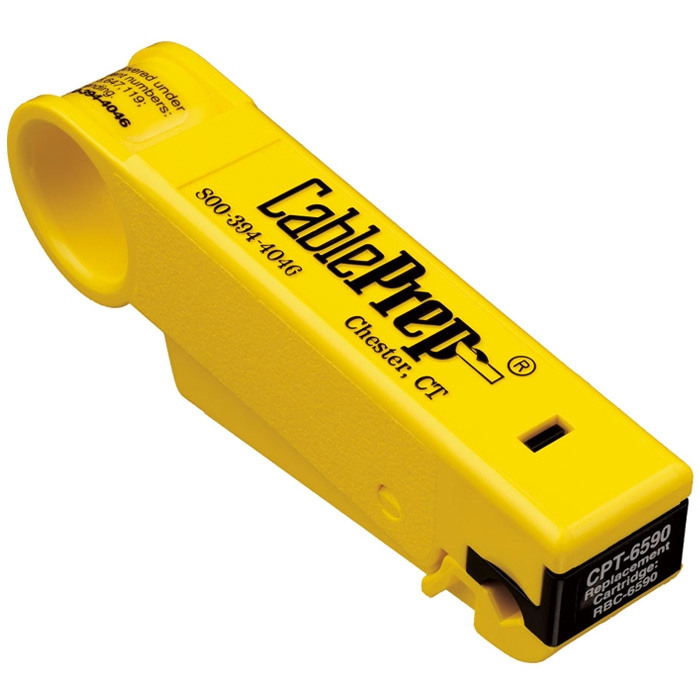

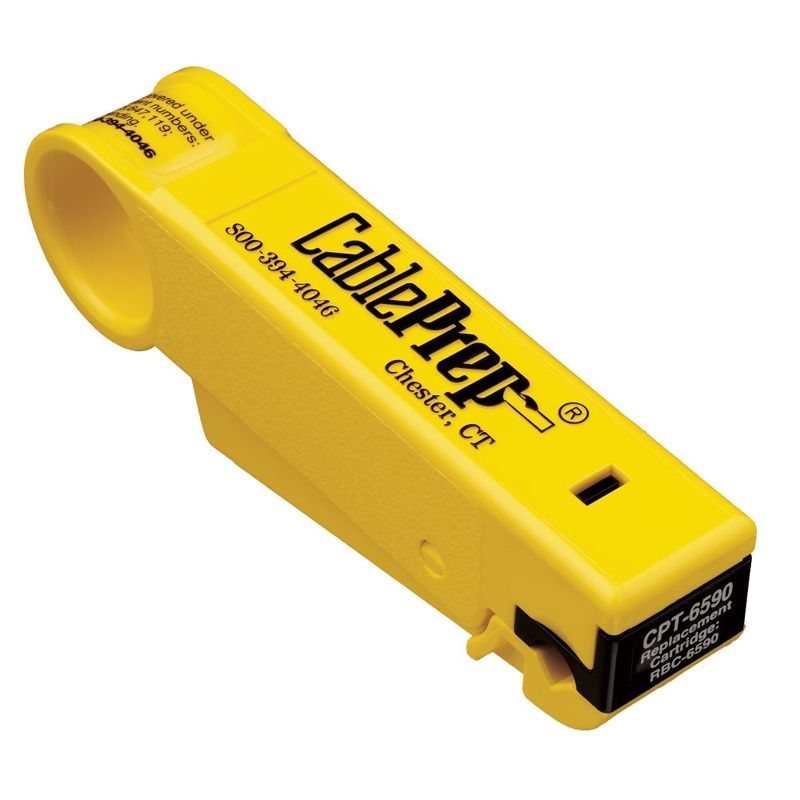

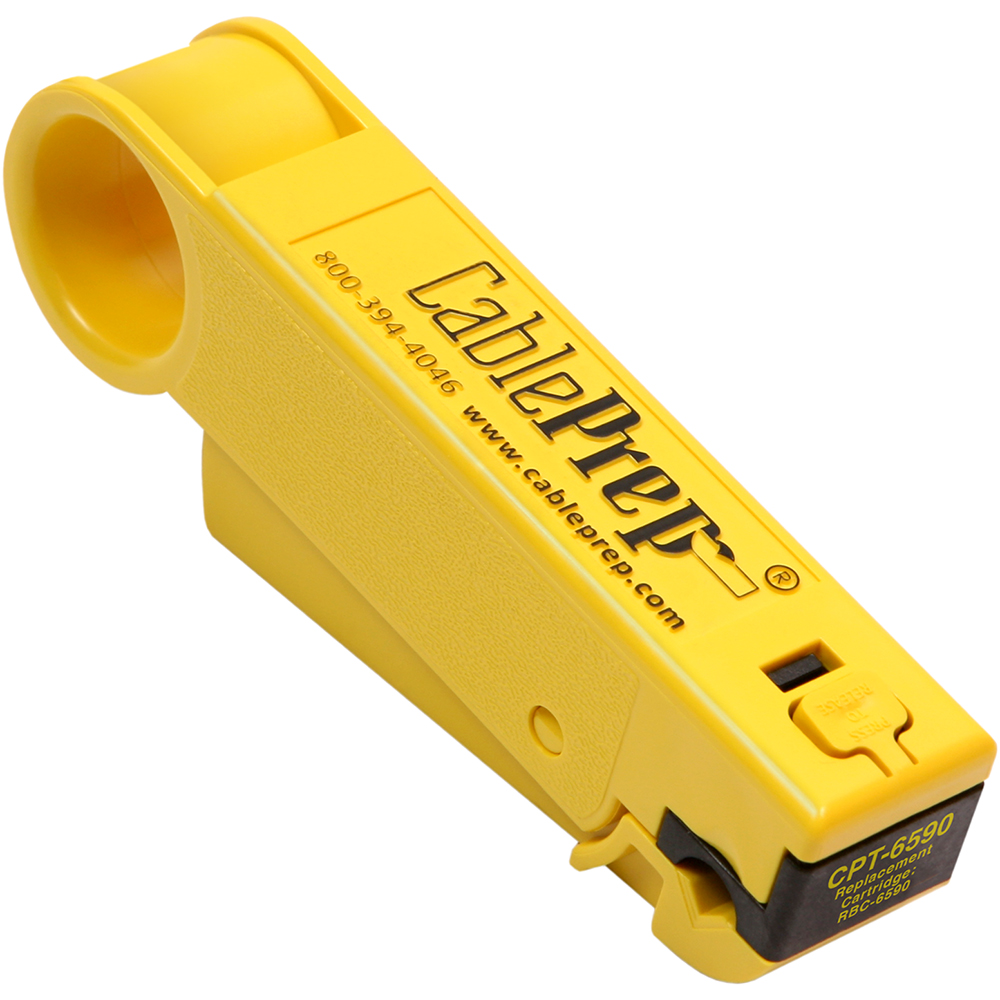

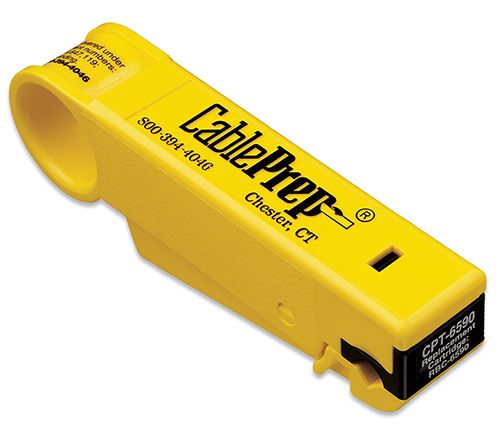

CPT Cable Stripping Tools

CPT coax cable strippers are factory-calibrated to remove the right amount of cable jacket, cut the braid and dielectric to the proper length, and expose the center conductor in one smooth operation.

The CPT Series of cable stripping tools strip the jacket and cut back the braid and dielectric to the proper dimensions on braided and braid-replacement drop cables, including standard (single) through quad shielded RG-6, -59, -7, and -11 cables. CPT tools are also available for Belden, SCTE approved Commscope and Times Fiber Mini Coax, Plenum, Commscope® 59 Quad-series Headend, and Times Fiber TXFF cables.
CPT actionAn Ergonomic, Efficient Design:
The CPT body is comfortable to hold and easy to operate with either hand. Because jacket, braid, and dielectric are cut with one simple motion, cables can be prepared quickly and easily.

CPT cartridge bladesHardened, Tool-steel Blades:
Made of the highest quality steel, CPT blades ensure optimum performance over a long life. Each cartridge can prepare 2,500 – 5,000 cables, depending on braid coverage.

Stripped RGFactory Calibration:
Pre-calibrated dimensions for different applications help to ensure that jackets are stripped and braid and dielectric are cut back properly.

CPT cleanoutPatented Clean-out Feature:
The patented cleanout feature of the CPT tool automatically removes excess jacket, braid, and dielectric from the tool after stripping.

CPT DropGroupColor-coded Bodies and Cartridges:
Color-coding of the tool bodies and replaceable cartridges makes it easy to identify the right tool for the application. The cartridges snap easily into place.

Lightweight Durability:
Rugged enough for the toughest jobs, lightweight CPT tools offer consistent, precision performance even under harsh conditions.

Here you can define the content that will be placed within the current tab.

NumberWeight
(Ounces)
Weight
(Grams)
Tool Color / Cartridge ColorBlade Cartridges Supplied with Tool
CPT-65902.982Yellow / BlackOne installed / One spare
CPT-6590-SINGLE2.264Yellow / BlackOne installed
CPT-6590S2.982Yellow / BlackOne installed / One spare
CPT-6590-1S2.264Yellow / BlackOne installed
CPT-6590PL2.982Yellow / BlueOne installed
CPT-12502.982Red / BlueOne installed
CPT-6590TS2.982Yellow / WhiteOne installed / One spare
CPT-6590TS-12.264Yellow / WhiteOne installed
CPT-59HEC22.264Yellow / WhiteOne installed
CPT-11002.982Blue / GreyOne installed / One spare
CPT-1100-SINGLE2.264Blue / GreyOne installed
CPT-1100PL2.982Blue / BlueOne installed
CPT-1100-1252.982Blue / OrangeOne installed
CPT-75382.264Green / YellowOne installed
CPT-76912.264Green / Smoke GreyOne installed
Cable TypeBraid Exposure
(inches/mm)
Center Conductor Exposure
(inches/mm)
Tool Part NumberCompatible with the following replacement cartridges:
Coax Cable: RG-6 & RG-59
6 & 590.250 / 6.40.250 minimum /
6.4 minimum
CPT-6590
CPT-6590-SINGLE
CPT-6590S
(w/stop)
CPT-6590-1S
(w/stop)
RBC-6590
6 & 59 Plenum0.250 / 6.40.250 minimum /
6.4 minimum
CPT-6590PLRBC-6590PL
6 & 590.125 / 3.20.250 with stop /
6.4 with stop
CPT-1250RBC-1250
TriShield 60.250 / 6.40.250 / 6.4CPT-6590TS
CPT-6590TS-1
RBC-6590TS
CommScope 59
Quad Series
Head End
0.250 / 6.4
(Cuts off first layer of braid)
0.250 minimum /
6.4 minimum
CPT-59HEC2RBC-59HEC2
Coax Cable: RG-7 & RG-11
7 & 110.250 / 6.40.250 minimum / 6.4 minimumCPT-1100
CPT-1100-SINGLE
RBC-1100
7 & 11 Plenum0.250 / 6.40.250 minimum /
6.4 minimum
CPT-1100PLRBC-1100PL
7 & 110.125 / 3.20.250 minimum /
6.4 minimum
CPT-1100-125RBC-1100-125
Mini Coax
Belden0.250 / 6.40.250 minimum /
6.4 minimum
CPT-7538RBC-7538
Commscope and Times Fiber (SCTE Approved)0.250 / 6.40.250 minimum /
6.4 minimum
CPT-7691RBC-7691
Flexible Feeder
Times Fiber Flexible Feeder (TXFF) and CommScope F50
This tool was replaced by the Super CPT.
0.250 / 6.4AdjustableCPT-TXFF-250 replaced by
Part Number
SCPT-TXFF or
SCPT-TXFF-6
RBC-TXFF-250
RBC-6590
